DYNAJET
Spray lance SL2800 R43
High-pressure spray lance with sensor and electronic remote switching for professional DYNAJET cleaning units. It is designed for controlled manual spraying and supports safe, efficient operation from the work position.
Working pressure should match the task. Surface preparation and general maintenance typically use 150 to 500 bar, while industrial coating removal and concrete work require higher pressure. Contact your nearest distribution partner for guidance on the right pressure and flow rate for your specific job.
DYNAJET high-pressure cleaners are built in Tjæreborg, Denmark, for daily professional use. Spare parts and service are available through our distribution partners. For warranty terms specific to your unit, contact your local distribution partner.
DYNAJET high-pressure cleaners are built to comply with applicable safety and emissions standards. Operators should always follow local safety regulations and use appropriate protective equipment.
DYNAJET is sold exclusively through distribution partners worldwide, giving operators local access to product expertise, spare parts and service. If you do not know your local partner, contact us directly and we will help you find the right support in your region.

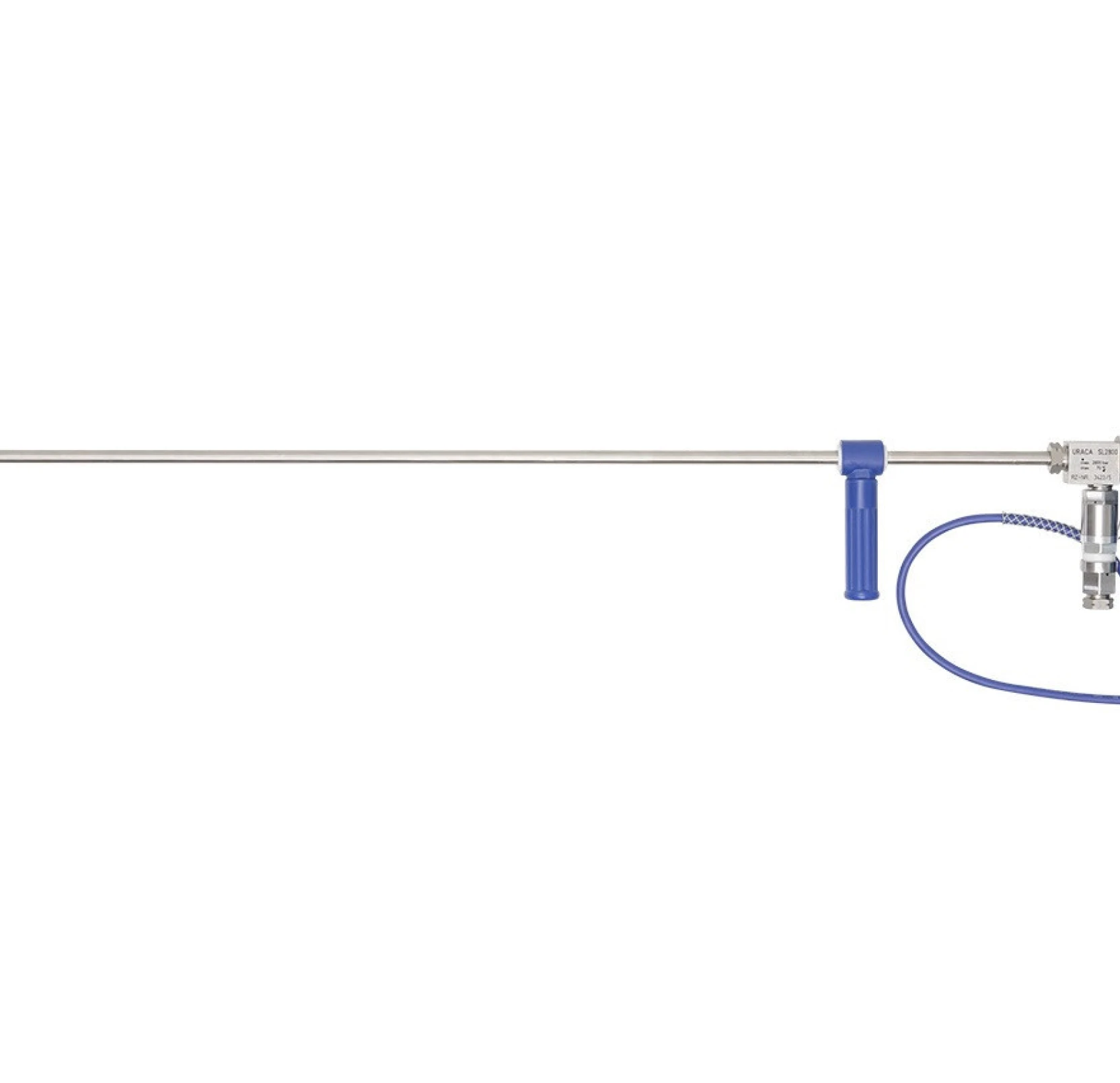

Remote-controlled spraying for precise work
The Spray lance R43 is a professional lance handle for high-pressure cleaning systems with electronic control. It combines safe manual operation with an integrated remote switch in the handle, allowing the operator to start pressure delivery and interrupt spraying directly at the point of use. This makes daily work more efficient and keeps handling clear and controlled.
The lance is suited to demanding cleaning tasks where reliable control and a robust connection are essential. Its automatic trigger lock helps prevent unintended activation, while the design also allows use in a mechanical holding device when required.
Developed for use with specially equipped DYNAJET cleaning units, the R43 supports structured work in industrial environments where precision, safety and smooth workflow matter. It is supplied as a lance handle without lance tubes, making it a flexible base component for a suitable lance setup.
Description

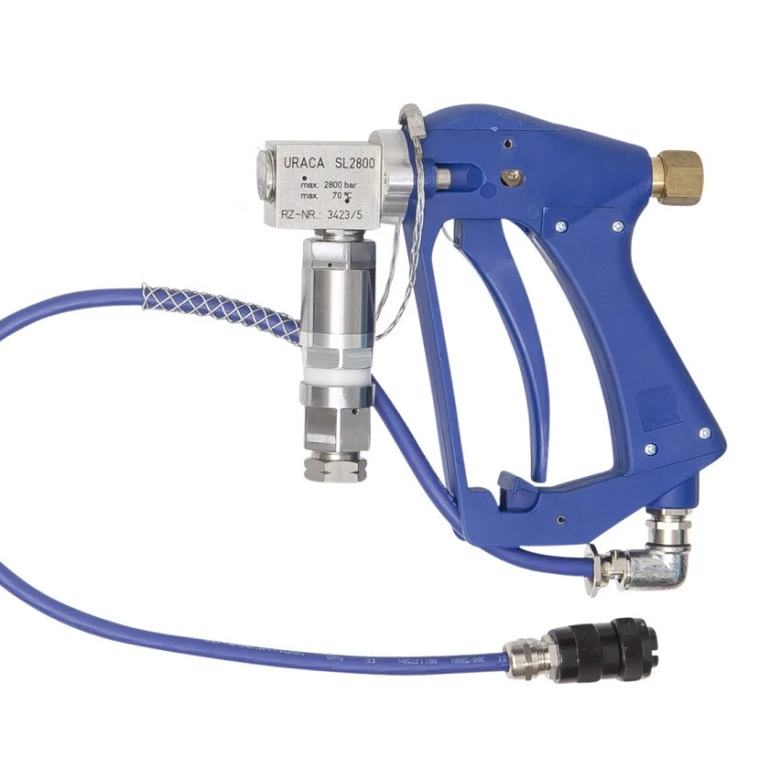

SL 2,800 bar spray lance with sensor without lance tubes.
Lance handle for PN 2,800 bar with electronic signal. Short cable with connector. Safety trigger with lock to prevent the gun from triggering accidentally.
Connections: 2x M26 x 1.5 IT.
The spray lance can only be used in combination with a high-pressure cleaning unit whose electrical control system is specially equipped for this purpose.
The trigger lever locks automatically so that unintentional operation is not possible. The spray lance can be used for manual spraying or it can be clamped in a mechanical holding device. mechanical holding device.
The spray lance is equipped with an electric remote switch located in the handle. With the operator/user can switch the pump to pressure or pressureless delivery from the spraying location. delivery. The remote switch is connected to a solenoid valve via the electrical control of the pump unit. solenoid valve, which e.g. controls the compressed air supply to the air-actuated pump-changeover valve.
When the trigger is actuated, the remote switch reacts and switches the pump over via the changeover valve so that it delivers into the spray lance and builds up pressure. The spraying process begins.
When the trigger is released again, the pump is switched off to pressureless delivery. The spraying process is interrupted.
If the recoil force exceeds 150 N, the spray lance must be equipped with a shoulder support, which we supply on special order.
Suitable Lances
Supplied without thrust rings and thrust bolt.
Matching lance tubes:
Length 800 mm 482519
Length 1.200 mm 482520
Length 2.000 mm 482521
Suitable pressure ring and pressure screw
Pressure ring 474636
Pressure screw 474637
